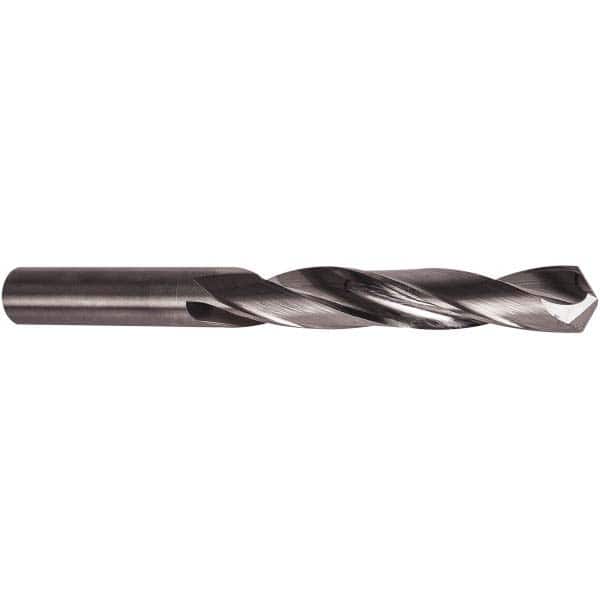

Jobber Length Drill Bit: 0.1772″ Dia, 118 °, Solid Carbide Bright/Uncoated, 2.758″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series D33M
Item #: 80557853
Brand: Precision Twist Drill
Model #: 6002390
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Drill Bit Size (mm) | 4.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 118 |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1772 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7580 |
| Flute Length (mm) | 41.00 |
| Flute Length (Decimal Inch) | 1.6154 |
| Series | D33M |
| Tool Application | Self-Centering |
| Flute Length x Diamter Ratio | 3xD |
| Flute By Diameter Ratio | 3xD |
| Shank Diameter (mm) | 4.50 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | D33M |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
