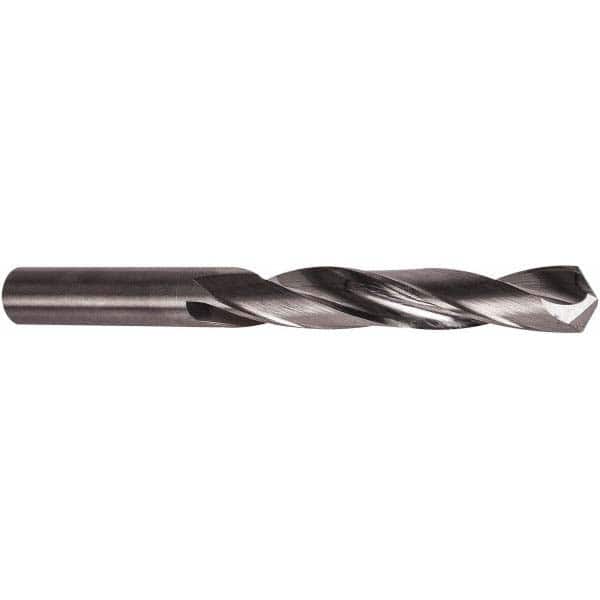

Jobber Length Drill Bit: 0.07″ Dia, 118 °, Solid Carbide Bright/Uncoated, 1.75″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series D33W
Item #: 80538267
Brand: Precision Twist Drill
Model #: 6002163
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0700 |
| Drill Bit Size (Wire) | #50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 118 |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.0700 |
| Overall Length (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 1.7500 |
| Flute Length (Decimal Inch) | 0.8750 |
| Series | D33W |
| Tool Application | Centering |
| Flute Length x Diamter Ratio | 3xD |
| Flute By Diameter Ratio | 3xD |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
