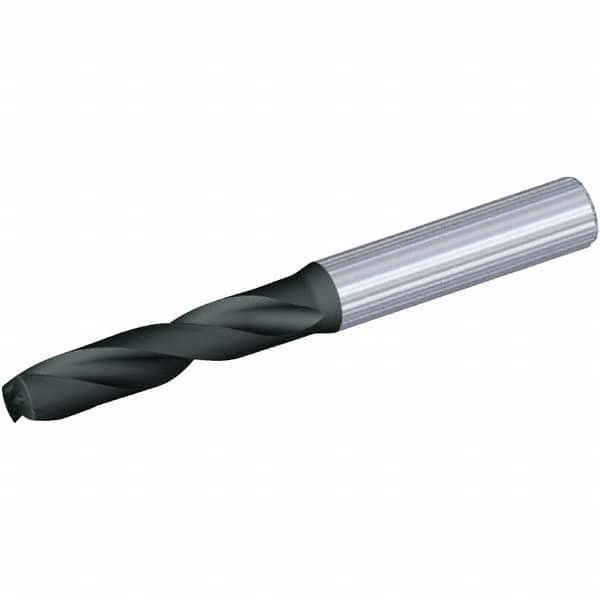

Jobber Length Drill Bit: 0.1654″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 80382468
Brand: Kennametal
Model #: 3640744
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1654 |
| Drill Bit Size (mm) | 4.20 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 74.00 |
| Flute Length (mm) | 36.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 15/64 |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.80 |
| Drill Bit Diameter Tolerance | 0.004 to 0.016 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 6537K |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
| Specification Designation | DIN |
