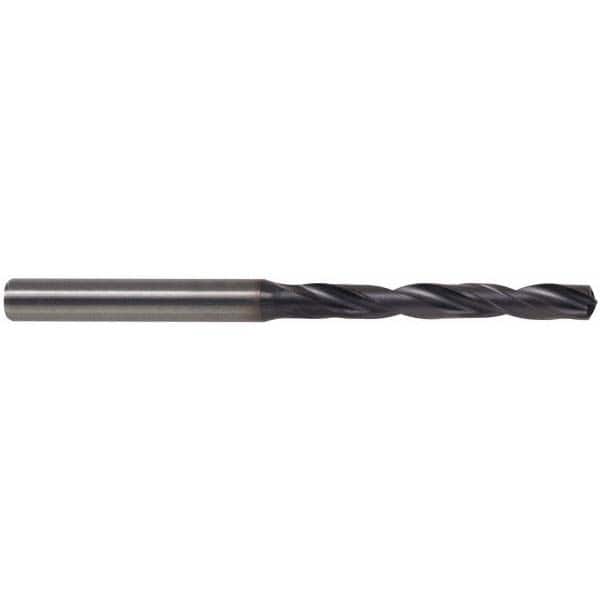

Screw Machine Length Drill Bit: 0.2835″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series B291-YPL
Item #: 80382435
Brand: Kennametal
Model #: 3668057
Product Specifications
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2835 |
| Overall Length (Inch) | 3-1/8 |
| Shank Diameter (mm) | 8.00 |
| Series | B291-YPL |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.40 |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (Inch) | 1-5/8 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
