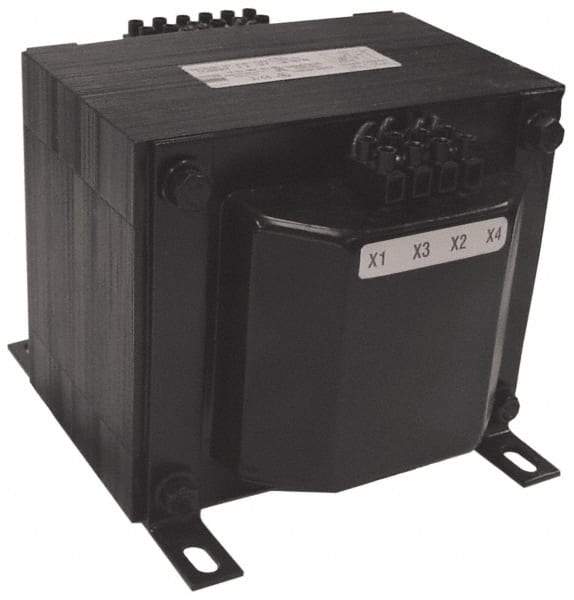

Sola/Hevi-Duty - 1 Phase, 0.5 kVA, Control Transformer - 2 Input, 1 Output Winding, 50/60 Hz, 6.93 Inch Deep x 5.56 Inch High, 131°F Temp Rise
Item #: 80252091
Brand: Sola/Hevi-Duty
Model #: E500TF
Exact Tooling IR#: 04
Features and Benefits
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Power Rating (VA) | 500 |
| Power Rating (kVA) | 0.50 |
| Input Voltage | 208/240/415/480/600 V |
| Output Voltage | 120 V |
| Fuse Status | NonFused |
| Number of Phases | 1 |
| Number of Input Windings | 2 |
| Number of Output Windings | 1 |
| Temperature Rise (F) | 131 |
| Frequency Rating (Hz) | 50/60 |
| Ingress Protection Rating | IP20 |
| Overall Width (Decimal Inch) | 6.3800 |
| Overall Height (Decimal Inch) | 5.5600 |
| Overall Depth (Decimal Inch) | 6.9300 |
| Standards Met | ANSI; cULus Listed; IEC; JIC; NEMA; NMTBA |
