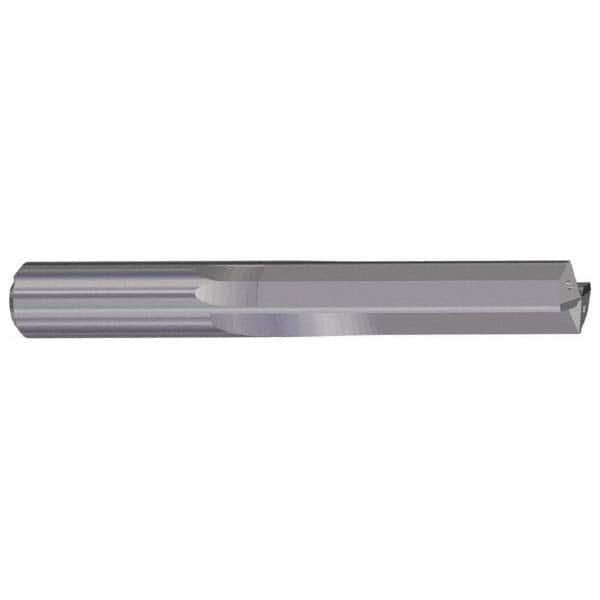

Die Drill Bit: 0.1969″ Dia, 130 °, Solid Carbide Bright Finish, Series B411
Item #: 80242373
Brand: Kennametal
Model #: 1191612
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 5.00 |
| Tool Material | Carbide |
| Coating/Finish | Bright |
| Flute Length (mm) | 44.00 |
| Drill Point Angle | 130 |
| Overall Length (mm) | 82.00 |
| Shank Diameter (mm) | 6.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Series | B411 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Coolant-Hole Shape | Round |
| Drill Bit Diameter Tolerance | +0.001 to +0.009 mm |
| Primary Workpiece Material | Non-Ferrous Metals; Cast Iron |
| Secondary Workpiece Material | Non-Ferrous Metals; Cast Iron |
| Drill Point Length (mm) | 1.17 |
| Maximum Drilling Depth (Decimal Inch) | 1.3800 |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (mm) | 36.00 |
| Specification Number | DIN 6537L |
