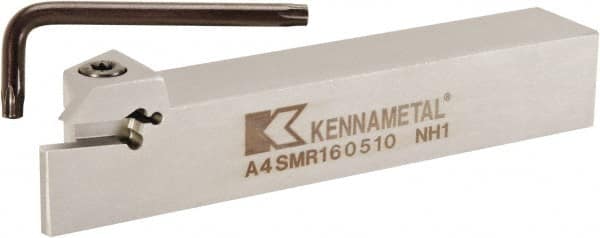

Kennametal - External Thread, 0.5512" Max Depth of Cut, 2mm Min Groove Width, 125mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 16mm Shank Height x 16mm Shank Width, A4G0200M02P02B Insert Style, A4SM Toolholder Style, Series A4
Item #: 80222599
Brand: Kennametal
Model #: 3017342
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (Decimal Inch) | 0.0787 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Series | A4 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4G0200M02P02B |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6378 |
| Head Height (mm) | 25.00 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Shank Length (Decimal Inch) | 3.7402 |
| Shank Length (mm) | 95.00 |
