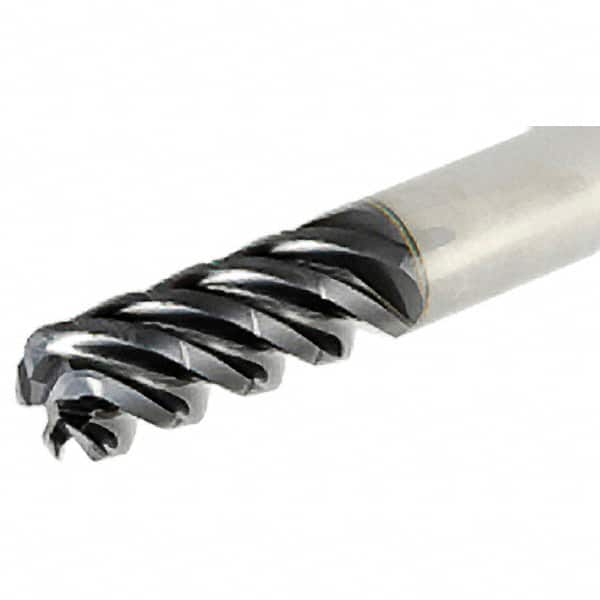

Iscar - 1/4" Diam, Variable Pitch, 1/2" LOC, 4 Flute Solid Carbide 0.05" Corner Radius Roughing End Mill - TiAlN Finish, 2-1/2" OAL, 1/4" Shank Diam, Single End, 38° Helix
Item #: 80159718
Brand: Iscar
Model #: 5680938
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 4 |
| Pitch | Variable |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/4 |
| End Type | Corner Radius |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 38.00 |
| Extended Reach | No |
| Corner Radius (Decimal Inch) | 0.0500 |
| Coolant Induced | No |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | High |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | Yes |
