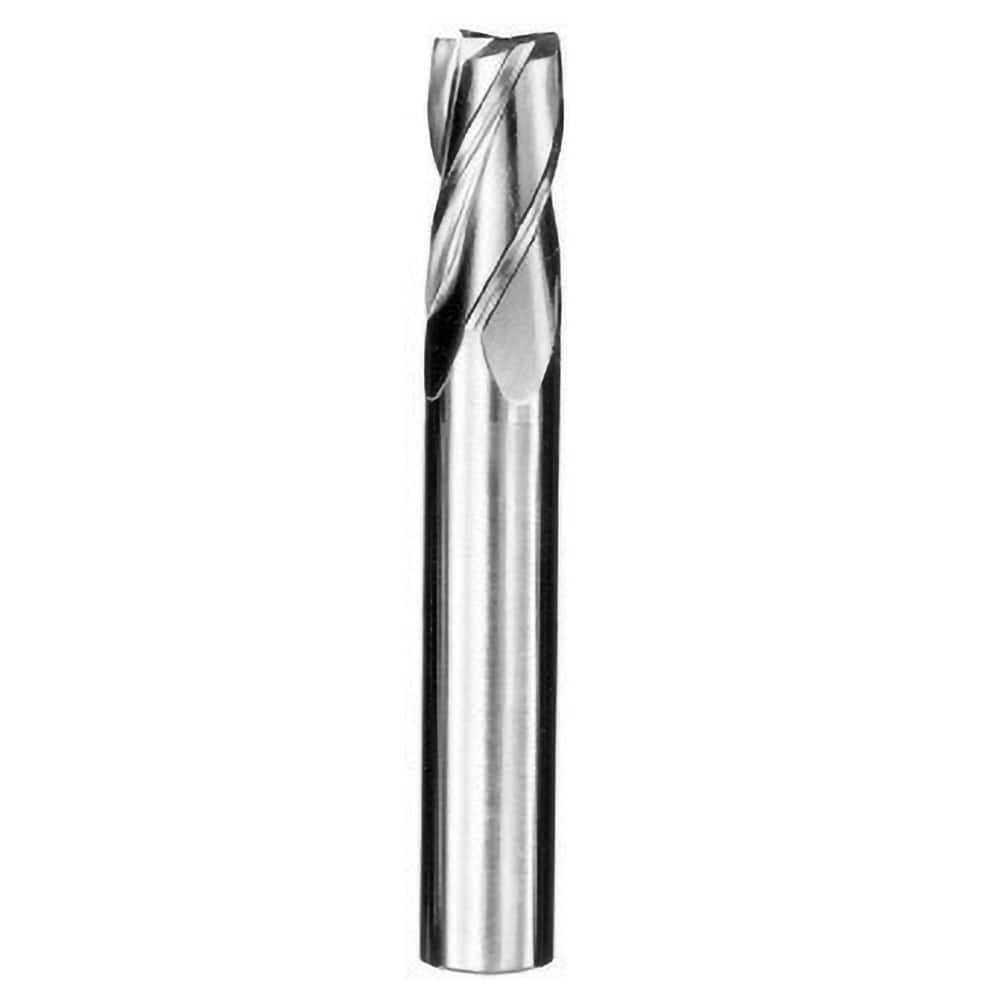

SGS - 3/4" Diam, 1-1/2" LOC, 3/4" Shank Diam, 4" OAL, 4 Flute Solid Carbide Square End Mill
Item #: 80154743
Brand: SGS
Model #: 30182
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 3/4 |
| Single or Double End | Single |
| Overall Length (Inch) | 4 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30.00 |
| Variable Helix | No |
| Variable Index | Yes |
| Flute Type | Spiral |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00051 |
| Series/List | 1 |
