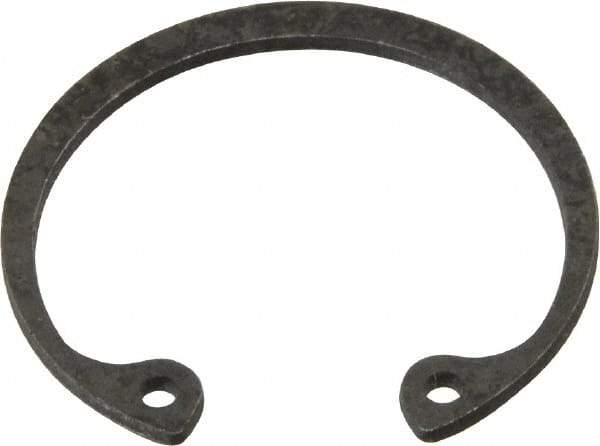

Value Collection - 15/16" Nominal, 0.042" Thick, Phosphate Finish, Spring Steel Snap Internal Retaining Ring - 0.046" Groove Width, 0.031" Groove Depth, 1" Groove Diam
Item #: 80122229
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Spring Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 15/16 |
| Nominal Size (Inch) | 15/16 |
| Groove Diameter (Decimal Inch) | 1.0000 |
| Groove Width (Decimal Inch) | 0.0460 |
| Free Outside Diameter (Decimal Inch) | 1.0410 |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0310 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.015 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
