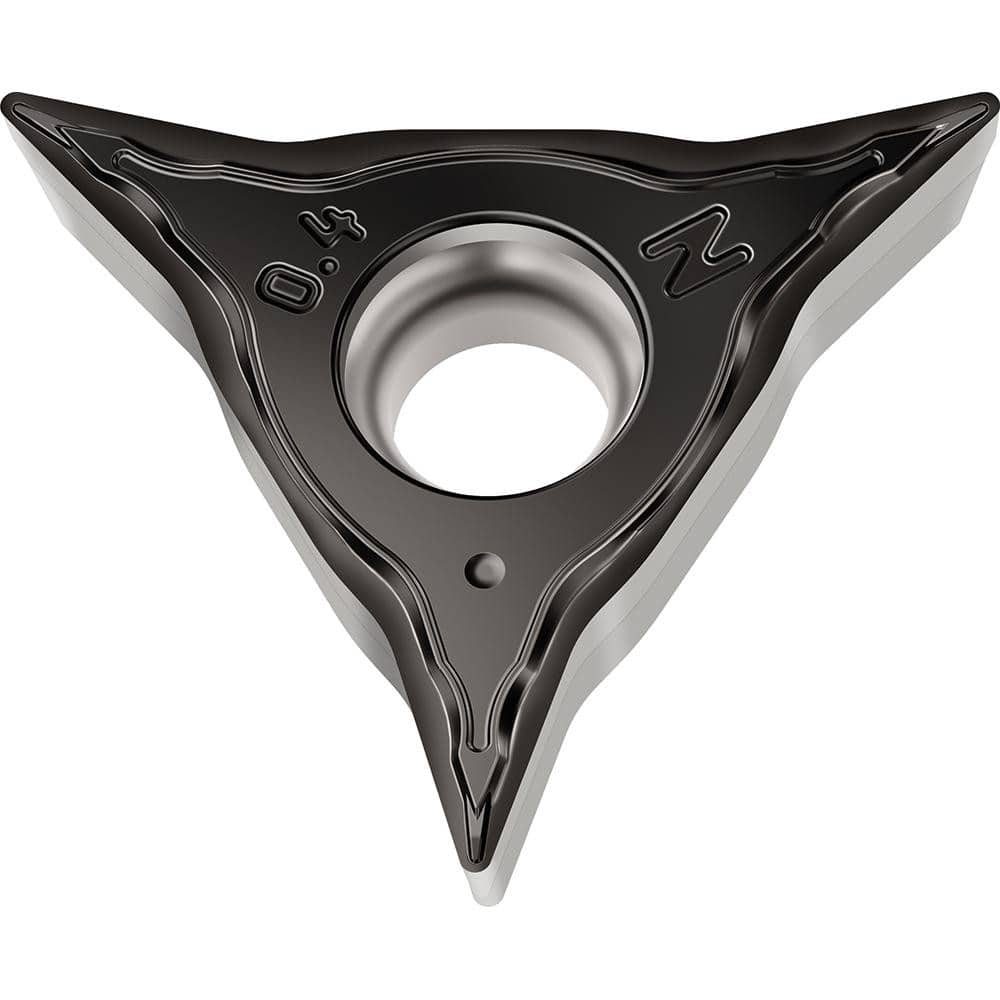

Turning Insert: WL25VC0702NFM4 WSM20S , Solid Carbide Al2O3 Finish, Neutral, 0.9840″ Long, 1/2″ Inscribed Circle, 0.0080″ Corner Radius, 35.0 ° N/A Triangle, Series WL-VCN-FM4
Item #: 79990586
Brand: Walter
Model #: 8138253
Product Specifications
| Insert Style | WL-VC |
| Insert Shape Code | V |
| Insert Size Code | 0702 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM20S |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | WL-VCN-FM4 |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.9840 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | WL25VC0702NFM4WSM20S |
| Iso Code | WL25-VC0702N-FM4 WSM20S |
| Chip Breaker | FM4 |
| Coating/Finish | Al2O3 |
