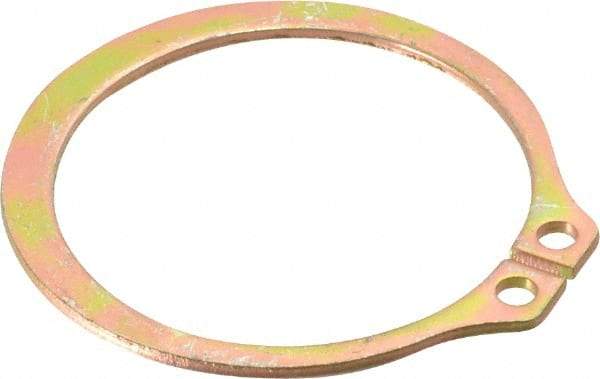

Rotor Clip - 41.91mm Groove Diam, 1-3/4" Shaft Diam, Cadmium-Plated Steel, Snap External Retaining Rings - 0.068" Groove Width, 0.05" Groove Depth, 0.062" Ring Thickness, Grade 1060-1090
Item #: 79949426
Brand: Rotor Clip
Model #: SH-175ST MCD
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 44.45 |
| Shaft Diameter (Inch) | 1-3/4 |
| Shaft Diameter (Decimal Inch) | 1.7500 |
| Groove Diameter (Decimal Inch) | 1.6500 |
| Groove Diameter (mm) | 41.91 |
| Free Diameter (Decimal Inch) | 1.6180 |
| Free Diameter (mm) | 41.10 |
| Free Outside Diameter (Decimal Inch) | 2.3100 |
| Military Specification | MS 16624-1175 |
| Material | Steel |
| Finish/Coating | Cadmium-Plated |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0680 |
| Groove Width (mm) | 1.73 |
| Groove Depth (Decimal Inch) | 0.0500 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Ring Thickness (mm) | 1.57 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.020 to 0.013 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Ring Thickness Tol. (Plated Ring) (Decimal Inch) | -0.003 to 0.003 |
| Hardness | Rockwell C 47-52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
