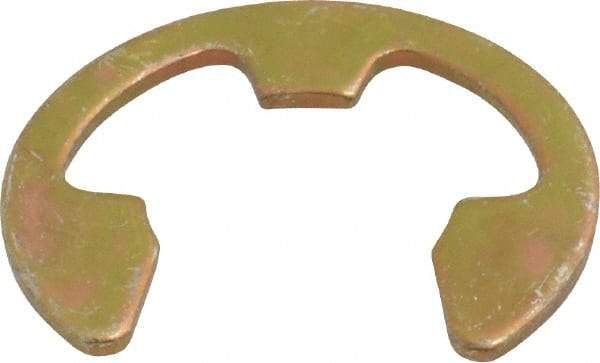

Rotor Clip - 14.73mm Groove Diam, 3/4" Shaft Diam, Cadmium-Plated Steel, E Style External Retaining Rings - 0.056" Groove Width, 0.085" Groove Depth, 0.05" Ring Thickness, Grade 1060-1090
Item #: 79949350
Brand: Rotor Clip
Model #: E-75ST MCD
Exact Tooling IR#: 04
Features and Benefits
E-style external retaining rings snap into grooves from the side of a shaft. They are ideal for use on small-diameter shafts. E-style retaining rings are also referred to as radially installed or side-mount retaining rings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | E Style |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 19.05 |
| Shaft Diameter (Inch) | 3/4 |
| Shaft Diameter (Decimal Inch) | 0.7500 |
| Groove Diameter (Decimal Inch) | 0.5800 |
| Groove Diameter (mm) | 14.73 |
| Free Diameter (Decimal Inch) | 0.5740 |
| Free Diameter (mm) | 14.58 |
| Free Outside Diameter (Decimal Inch) | 1.1200 |
| Free Outside Diameter (mm) | 28.45 |
| Military Specification | MS 16633-1075 |
| Material | Steel |
| Finish/Coating | Cadmium-Plated |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0560 |
| Groove Width (mm) | 1.42 |
| Groove Depth (Decimal Inch) | 0.0850 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Ring Thickness (mm) | 1.27 |
| Number of Prongs | 3 |
| Groove Diameter Tolerance (Decimal Inch) | 0.0000 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.005 to 0.003 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Ring Thickness Tol. (Plated Ring) (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell C 47-52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
