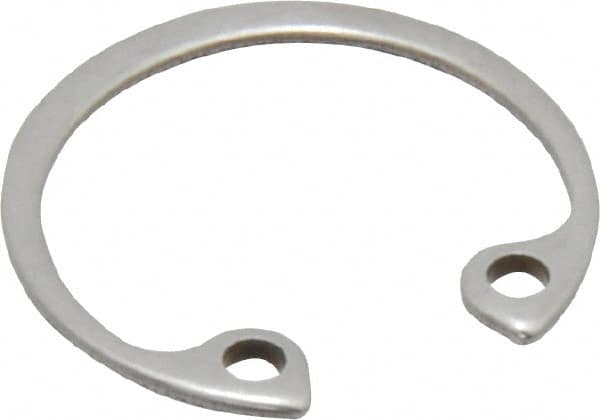

Rotor Clip - 0.035" Thick, Passivated Finish, Stainless Steel Snap Internal Retaining Ring - 0.039" Groove Width, 0.02" Groove Depth, 0.665" Groove Diam, Grade 15-7 Grade 632
Item #: 79949285
Brand: Rotor Clip
Model #: HO-62SS MPS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 5/8 |
| Bore Diameter (Decimal Inch) | 0.6250 |
| Bore Diameter (mm) | 15.88 |
| Groove Diameter (Decimal Inch) | 0.6650 |
| Groove Diameter (mm) | 16.89 |
| Groove Width (Decimal Inch) | 0.0390 |
| Groove Width (mm) | 0.99 |
| Free Outside Diameter (Decimal Inch) | 0.6940 |
| Free Outside Diameter (mm) | 17.63 |
| Military Specification | MS 16625-4062 |
| Ring Thickness (Decimal Inch) | 0.0350 |
| Ring Thickness (mm) | 0.89 |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0200 |
| Groove Depth (mm) | 0.51 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0020 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.010 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 1050 (Groove Safety Factor); 2507 (Ring Safety Factor) |
| Hardness | Rockwell 30N 63-69.5 |
| Fastener Standard | AMS-5529; UNS S15700 |
