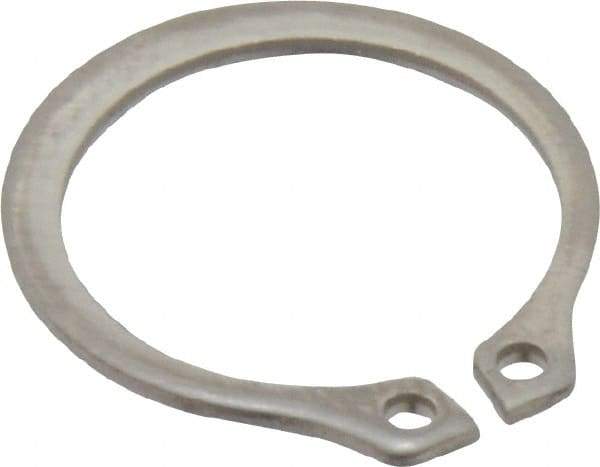

Rotor Clip - 14.94mm Groove Diam, 5/8" Shaft Diam, Passivated Stainless Steel, Snap External Retaining Rings - 0.039" Groove Width, 0.018" Groove Depth, 0.035" Ring Thickness, Grade 15-7 Grade 632
Item #: 79949152
Brand: Rotor Clip
Model #: SH-62SS MPS
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 15.88 |
| Shaft Diameter (Inch) | 5/8 |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Groove Diameter (Decimal Inch) | 0.5880 |
| Groove Diameter (mm) | 14.94 |
| Free Diameter (Decimal Inch) | 0.5790 |
| Free Diameter (mm) | 14.71 |
| Free Outside Diameter (Decimal Inch) | 0.9000 |
| Military Specification | MS 16624-4062 |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0390 |
| Groove Width (mm) | 0.99 |
| Groove Depth (Decimal Inch) | 0.0180 |
| Ring Thickness (Decimal Inch) | 0.0350 |
| Ring Thickness (mm) | 0.89 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.010 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell 30N 63-69.5 |
| Fastener Standard | AMS-5529; UNS S15700 |
