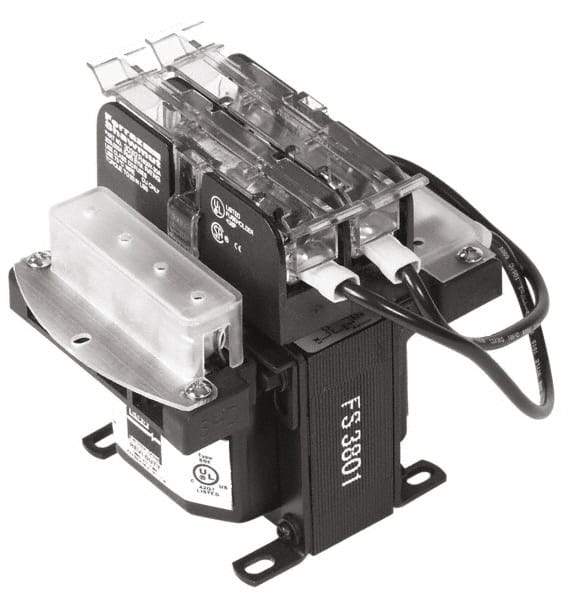

Sola/Hevi-Duty - 1 Phase, 0.5 kVA, Control Transformer - 60 Hz, 6.31 Inch Deep x 4.53 Inch High, 131°F Temp Rise
Item #: 79930020
Brand: Sola/Hevi-Duty
Model #: E500JL
Exact Tooling IR#: 04
Features and Benefits
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Power Rating (VA) | 500 |
| Power Rating (kVA) | 0.50 |
| Input Voltage | 208/240/277 V |
| Output Voltage | 120/24 V |
| Fuse Status | NonFused |
| Number of Phases | 1 |
| Temperature Rise (F) | 131 |
| Frequency Rating (Hz) | 60 |
| Overall Width (Decimal Inch) | 5-1/4 |
| Overall Height (Decimal Inch) | 4.5300 |
| Overall Depth (Decimal Inch) | 6.3100 |
| Includes | FB2 Secondary Fuse Holder |
| Standards Met | ANSI C89.1; cULus Listed E77014; IEC 707; ISO Class 1210; NEMA ST 1 |
