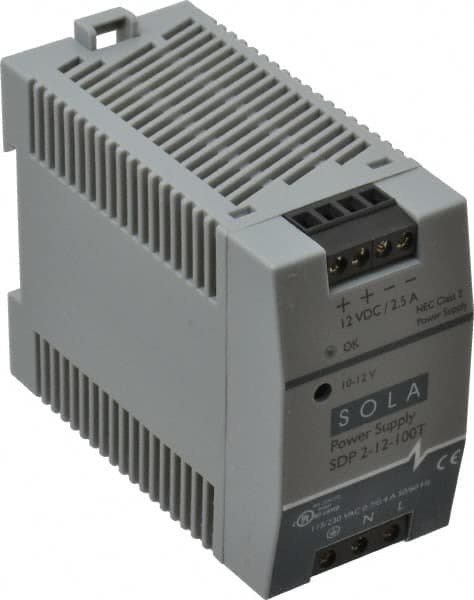

Sola/Hevi-Duty - 100 Watt, 3 to 2.5 Amp, 264 VAC, 375 VDC Input, 10 to 12 VDC Output, DIN Rail Power Supply - Screw Terminal Connection, 1 Output, 1.77 Inch Wide x 3.58 Inch Deep x 2.95 Inch High, Up to 80% Efficiency, 14 to 140°F, Green LED Display
Item #: 79929931
Brand: Sola/Hevi-Duty
Model #: SDP2-12-100-T
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Type | DIN Rail |
| Output Wattage | 100 |
| Maximum Input Voltage | 264 VAC; 375 VDC |
| Minimum Input Voltage | 85 VAC; 90 VDC |
| Number of Outputs | 1 |
| Output Voltage | 10-12 VDC |
| Output Amperage | 3-2.5 |
| Number of Phases | 1 |
| Connection Type | Screw Terminal |
| Hold-up Time (ms) | 25 |
| Efficiency | >80% |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 14 |
| Ingress Protection Rating | IP20 |
| Status Indicator | Green LED Display |
| Overall Height (mm) | 75 |
| Overall Height (Decimal Inch) | 2.9500 |
| Overall Width (mm) | 45 |
| Overall Width (Decimal Inch) | 1.7700 |
| Overall Depth (mm) | 91 |
| Overall Depth (Decimal Inch) | 3.5800 |
| Protection Features | Over Voltage Protection; Short Circuit Protection |
| Standards Met | CE IEC/EN60950; cULus Listed; cURus; RoHS Compliant |
