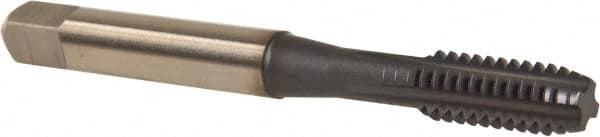

Cleveland - 1/4-20 UNC 3B 4 Flute TiCN Finish Powdered Metal Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 63.5mm OAL, 25.4mm Thread Length, H3 Limit, Oversize
Item #: 79818134
Brand: Cleveland
Model #: C28022
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered metal cobalt high speed steel provides the highest performance of the powdered metals. It is used at extremely high temperatures and cutting speeds on highly abrasive materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 1/4-20 |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Powdered Metal |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (mm) | 63.50 |
| Oversize | No |
| Series/List | CI1000 |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (mm) | 25.40 |
| Material Application | Cast Iron; Hardened Steel |
