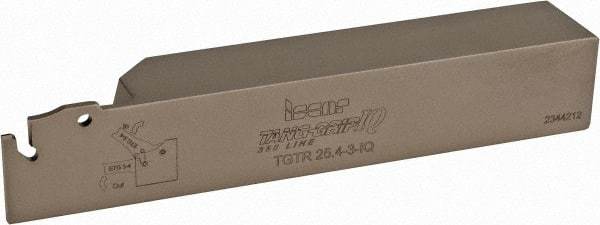

Iscar - TGT, Right Hand Cut, 2-1/4" Max Workpc Diam, TAG.. 6.., TAG.. 8.. Insert, Indexable Cutoff Toolholder - 1" Shank Width, 1" Shank Height, 5.905" OAL
Item #: 79777801
Brand: Iscar
Model #: 2301826
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Workpiece Diameter (Decimal Inch) | 2.2500 |
| Series | Tang-GripIQ |
| Toolholder Style | TGT |
| Insert Compatibility | TAG.. 6..; TAG.. 8.. |
| Overall Length (Decimal Inch) | 5.9050 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Insert Holding Method | Self Grip |
| Through Coolant | No |
| Minimum Insert Width (Decimal Inch) | 0.1100 |
| Insert Width (Decimal Inch) | 0.1100 |
| Maximum Insert Width (Decimal Inch) | 0.1380 |
| Head Height (Decimal Inch) | 1.0700 |
| Head Length (Decimal Inch) | 0.9000 |
| Shank Length (Decimal Inch) | 5.0100 |
| Blade Width (Decimal Inch) | 0.0980 |
| Complete Insert Compatibility | TAG L1.4J-8D; TAG L1.4JS-10D; TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-15D; TAG L2JS-6D; TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-15D; TAG L3JS-6D; TAG L4C-4D; TAG L4J-4D; TAG L5C-4D; TAG L5J-4D; TAG L6.3C-4D; TAG L6.3J-4D; TAG N1.4 |
