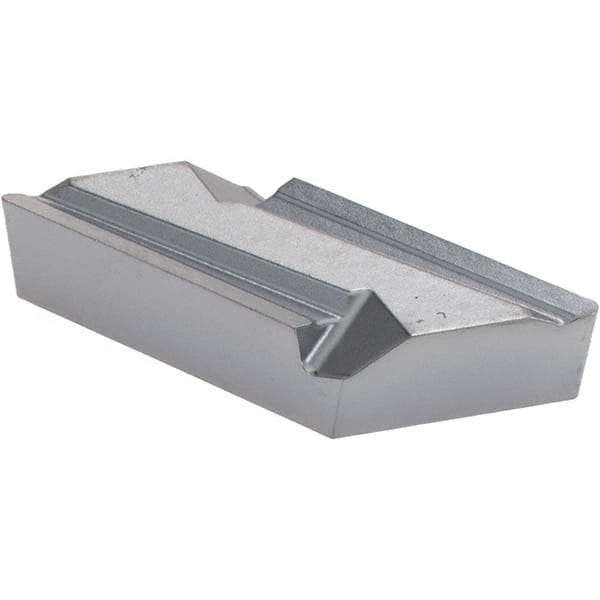

Turning Insert: KNUX3331R11 TT8020, Solid Carbide TiCN Finish, Right Hand, 0.7760″ Long, 3/8″ Inscribed Circle, 0.0200″ Corner Radius, 55.0 ° N/A Parallelogram, Series KNUX
Item #: 79775722
Brand: Ingersoll Cutting Tools
Model #: 5515706
Product Specifications
| Insert Style | KNUX |
| Insert Shape Code | K |
| Insert Size Code | 3331R11 |
| Insert Shape | Parallelogram |
| Clearance Code | N |
| Tolerance Code | U |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT8020 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | KNUX |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.7760 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | KNUX3331R11TT8020 |
| Iso Code | KNUX160405R11 TT8020 |
| Chip Breaker | R11 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | TiCN |
