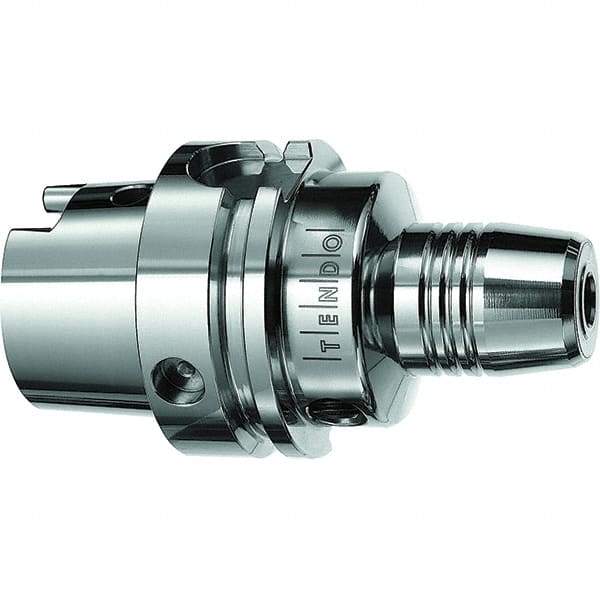

Schunk - HSK63A Taper Shank, 1/2" Hole Diam, Hydraulic Tool Holder/Chuck - 27.7mm Nose Diam, 101.6mm Projection, 46mm Clamp Depth, 25,000 RPM, Through Coolant
Item #: 79774030
Brand: Schunk
Model #: 204653
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 12.70 |
| Nose Diameter (Decimal Inch) | 1.0906 |
| Nose Diameter (mm) | 27.70 |
| Projection (Decimal Inch) | 4.0000 |
| Projection (mm) | 101.60 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 46.00 |
| Clamping Depth (Decimal Inch) | 1.8110 |
| Balanced to (RPM) | 25000 |
| TIR (mm) | 0.003 |
