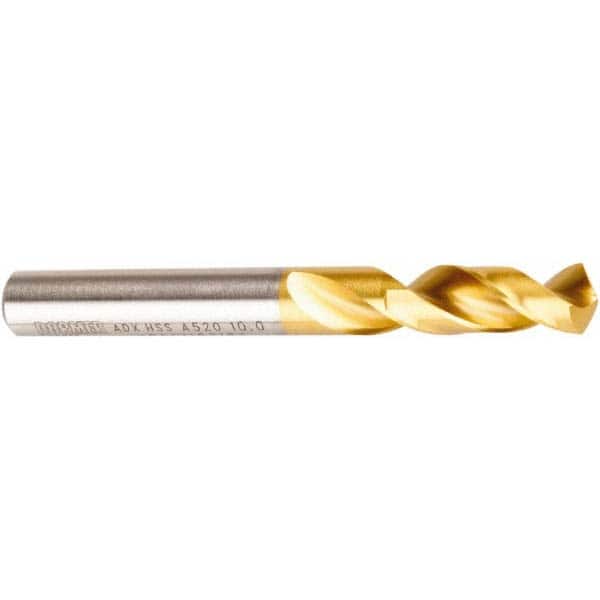

Screw Machine Length Drill Bit: 0.5078″ Dia, 130 °, High Speed Steel Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A520
Item #: 79770111
Brand: DORMER
Model #: 5970225
Product Specifications
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | ADX |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5079 |
| Drill Bit Size (Decimal Inch) | 0.5078 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Series | A520 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.00 |
| Flute By Diameter Ratio | 2.5xD |
| Tool Performance | High Performance |
| Standards | DIN 1897 |
| Flute Length (mm) | 51.00 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
