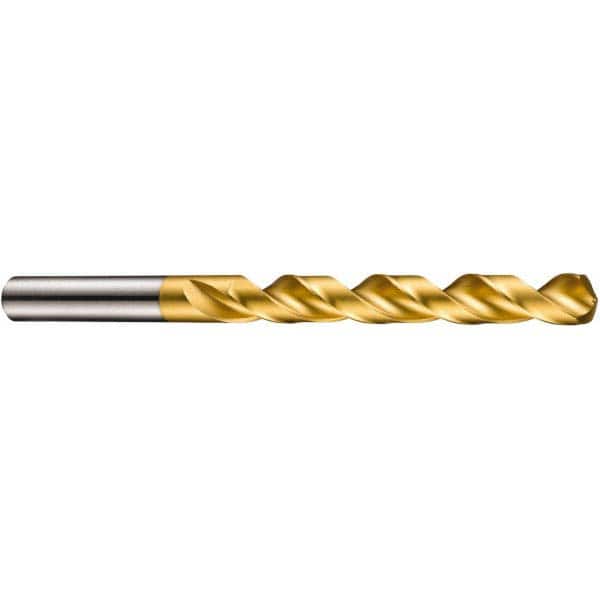

Jobber Length Drill Bit: 0.5118″ Dia, 130 °, High Speed Steel TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 79768800
Brand: DORMER
Model #: 5970535
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Drill Bit Size (mm) | 13.00 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | ADX |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5118 |
| Overall Length (mm) | 151.00 |
| Flute Length (mm) | 101.00 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Grade | Heavy-Duty |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 12.50 - 15.00 |
| Specification Designation | DIN |
