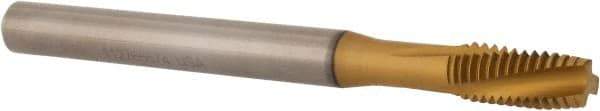

Kennametal - M6x1.00 Metric Coarse 3 Flute 6H Plug Spiral Flute Tap - Solid Carbide, TiAlN/TiN Finish, 70mm OAL, Left Hand Flute, Right Hand Thread
Item #: 79757274
Brand: Kennametal
Model #: 3031914
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiAlN/TiN is a multi-layer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M6x1.00 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN/TiN |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 70.00 |
| Helix Angle | 15 |
| Thread Standard | Metric Coarse |
| Oversize | No |
| Thread Length (mm) | 12.00 |
| Flute Type | Slow Spiral |
| Shank Diameter (mm) | 6.00 |
| Shank Length (mm) | 43 |
| Material Application | Alloy Steel; Carbon Steel; Ductile Iron |
