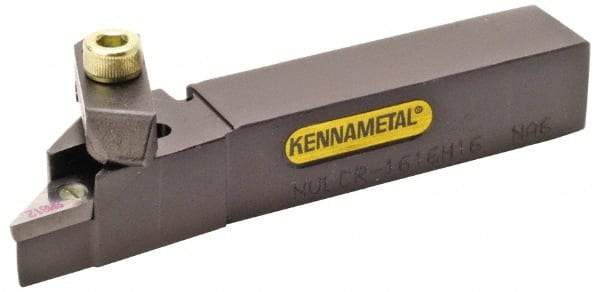

Kennametal - VC.., NVLC External Left Hand Indexable Profiling Toolholder - 63/64" Shank Height x 63/64" Shank Width, 150mm Long
Item #: 79738258
Brand: Kennametal
Model #: 1098913
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Rake | Neutral |
| Insert Compatibility | VC.. |
| Toolholder Style | NVLC |
| Series | Top Notch |
| Through Coolant | No |
| Shank Height (mm) | 25.00 |
| Shank Height (Inch) | 63/64 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Inch) | 63/64 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Head Length (mm) | 37.00 |
| Head Length (Decimal Inch) | 1.4567 |
| Complete Insert Compatibility | VC.. 160408 |
