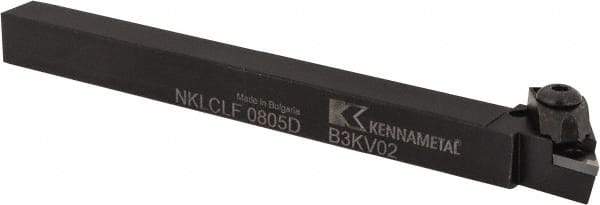

Kennametal - NP.., 5° Lead Angle NKLC External Left Hand Indexable Profiling Toolholder - 1/2" Shank Height x 1/2" Shank Width, 6" Long
Item #: 79737797
Brand: Kennametal
Model #: 1097455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Rake | Neutral |
| Insert Compatibility | NP.. |
| Toolholder Style | NKLC |
| Series | Top Notch |
| Through Coolant | No |
| Shank Height (mm) | 12.70 |
| Shank Height (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (mm) | 12.70 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Insert Holding Method | Clamp |
| Lead Angle | 5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
| Insert Inscribed Circle (mm) | 15.88 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Complete Insert Compatibility | NP.. 51L |
