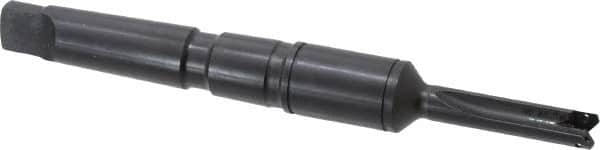

Allied Machine and Engineering - Series Y, 3/8 to 27/64" Diam, 2MT Taper Shank, Straight Flute Spade Drill - 1-1/4" Max Depth, 3-15/32" Body Length, 6-5/16" OAL, Short Length, Through Coolant
Item #: 79729992
Brand: Allied Machine and Engineering
Model #: 220Y0S-002I
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | Y |
| Minimum Drill Diameter (Inch) | 3/8 |
| Maximum Drill Diameter (Inch) | 27/64 |
| Shank Type | Taper Shank |
| Shank Taper Size | 2MT |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 6-5/16 |
| Maximum Drill Depth (Inch) | 1-1/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 2-1/32 |
| Body Length (Inch) | 3-15/32 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-2SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16 |
