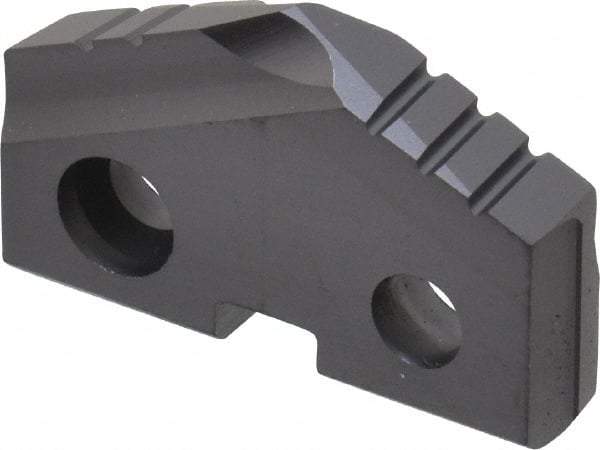

Allied Machine and Engineering - 1-1/32" Diam x 3/16" Thick, Seat Code 2, 132° Included Angle Spade Drill Insert - TiAlN Coated, High Speed Steel, Series T-A
Item #: 79706719
Brand: Allied Machine and Engineering
Model #: 132A-0101
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series Name | T-A |
| Diameter (Decimal Inch) | 1.0313 |
| Diameter (Inch) | 1-1/32 |
| Diameter (mm) | 26.19 |
| Series Code/Seat Size | 2 |
| Material | High Speed Steel |
| Coating | TiAlN |
| Thickness (Decimal Inch) | 0.1875 |
| Included Angle Degree | 132 |
| Material Grade | M4 |
