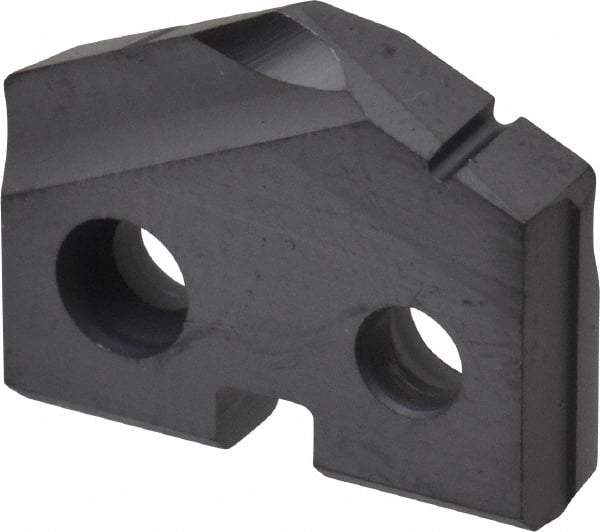

Allied Machine and Engineering - 23/32" Diam x 5/32" Thick, Seat Code 1, 132° Included Angle Spade Drill Insert - TiAlN Coated, High Speed Steel, Series T-A
Item #: 79706131
Brand: Allied Machine and Engineering
Model #: 131A-0023
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series Name | T-A |
| Diameter (Decimal Inch) | 0.7188 |
| Diameter (Inch) | 23/32 |
| Diameter (mm) | 18.26 |
| Series Code/Seat Size | 1 |
| Material | High Speed Steel |
| Coating | TiAlN |
| Thickness (Decimal Inch) | 0.1563 |
| Included Angle Degree | 132 |
| Material Grade | M4 |
