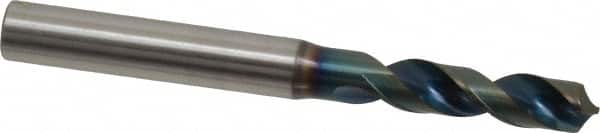

OSG - Letter E (1/4) 120° Spiral Flute Vanadium High Speed Steel Screw Machine Drill Bit - WD1 Finish, Right Hand Cut, 31mm Flute Length, 75mm OAL, Four Facet Point, Straight Shank
Item #: 79590881
Brand: OSG
Model #: 11555815
Exact Tooling IR#: 04
Features and Benefits
Vanadium high speed steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used for general applications on stainless steels and high silicon aluminums.
WD1 is a multi-layer coating that is harder and more resistant to heat than TiAIN. It is commonly used on medium-to high-carbon steel and other difficult-to-machine materials. WD1 is a proprietary coating exclusive to OSG Tap and Die, Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Bit Size (Letter) | E |
| Drill Bit Size (Inch) | 1/4 |
| Drill Point Angle | 120 |
| Drill Bit Material | Vanadium High Speed Steel |
| Drill Bit Finish/Coating | WD1 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 31.00 |
| Overall Length (mm) | 75.00 |
| Point Type | Four Facet |
| Shank Diameter (mm) | 8.00 |
| Spiral Type | Fast Spiral |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Tip Finish/Coating | None |
| Series/List | 1150 |
| Length Type | Stub |
