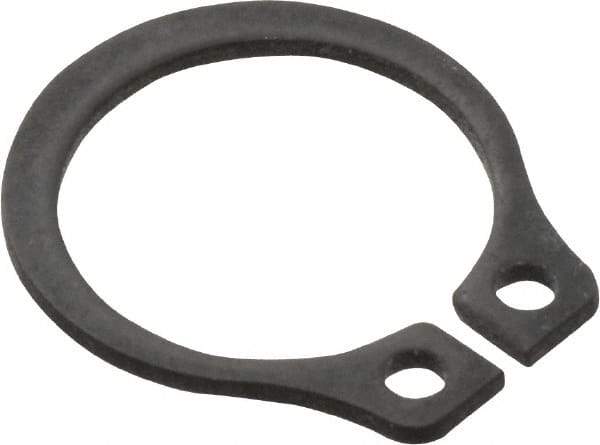

Value Collection - 0.352" Groove Diam, 3/8" Shaft Diam, Phosphate Spring Steel, Snap External Retaining Rings - 0.029" Groove Width, 0.025" Ring Thickness
Item #: 79529681
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 3/8 |
| Groove Diameter (Decimal Inch) | 0.3520 |
| Free Diameter (Decimal Inch) | 0.3380 |
| Material | Spring Steel |
| Finish/Coating | Phosphate |
| Nominal Size (Inch) | 3/8 |
| Groove Width (Decimal Inch) | 0.0290 |
| Ring Thickness (Decimal Inch) | 0.0250 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
