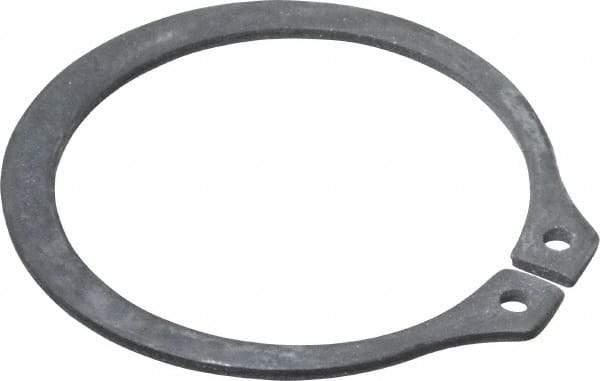

Value Collection - 1.232" Groove Diam, 1-5/16" Shaft Diam, Phosphate Spring Steel, Snap External Retaining Rings - 0.056" Groove Width, 0.05" Ring Thickness
Item #: 79529574
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 1-5/16 |
| Groove Diameter (Decimal Inch) | 1.2320 |
| Free Diameter (Decimal Inch) | 1.2140 |
| Material | Spring Steel |
| Finish/Coating | Phosphate |
| Nominal Size (Inch) | 1-5/16 |
| Groove Width (Decimal Inch) | 0.0560 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
