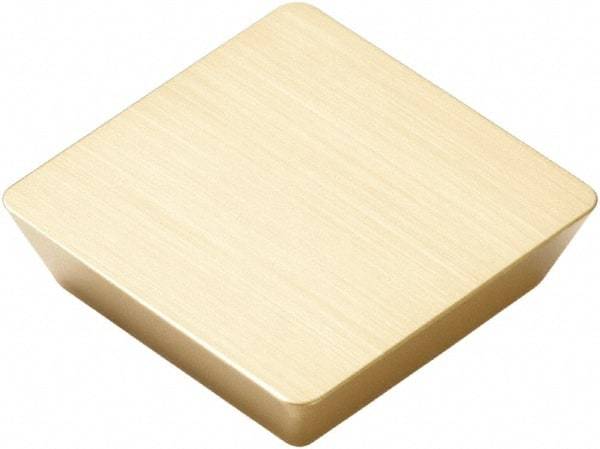

Seco - SENN120308 M12 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.091" Thick, 1/2" Inscribed Circle, 0.008" Corner Radius
Item #: 79459970
Brand: Seco
Model #: 23969
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SENN |
| Insert Size | 120308 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.0910 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 20.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | M12 |
| ISO Number | SENN120308T-M12 |
