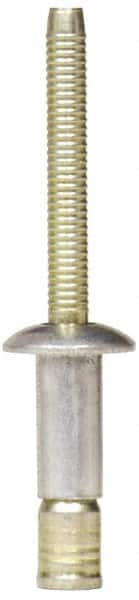

RivetKing - Size 64 Dome Head Steel Structural with Locking Stem Blind Rivet - Steel Mandrel, 0.062" to 0.27" Grip, 0.4" Head Diam, 0.192" to 0.196" Hole Diam, 0.416" Length Under Head, 3/16" Body Diam
Item #: 79455705
Brand: RivetKing
Model #: SBS64/BB/P100
Exact Tooling IR#: 04
Features and Benefits
Structural rivets with a locking stem have a locking collar on the stem that creates a watertight, vibration-resistant bond.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Structural w/ Locking Stem |
| Head Type | Dome |
| Size Code | 64 |
| Rivet Material | Steel |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.0620 |
| Maximum Grip (Decimal Inch) | 0.2700 |
| Head Diameter (Decimal Inch) | 0.4000 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Length Under Head (Decimal Inch) | 0.4160 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Head Height (Decimal Inch) | 0.0700 |
