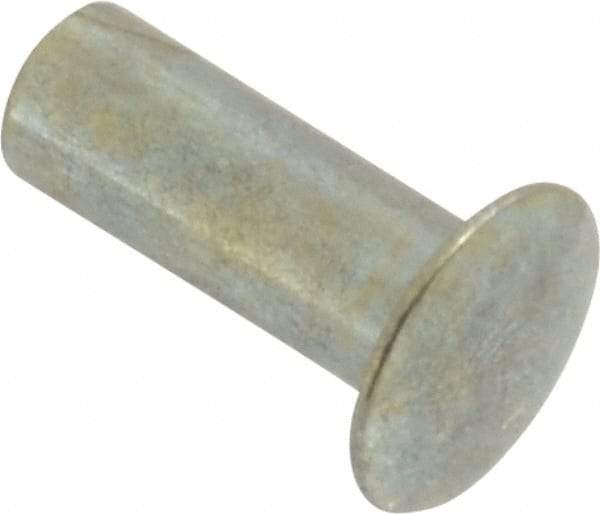

RivetKing - 0.084 to 0.09" Hole Diam, Round Head, Zinc Plated Steel, Semi Tubular Rivet - 7/32 Head Diam, 5/16" Length Under Head, 1/8 Body Diam
Item #: 79455002
Brand: RivetKing
Model #: XTJ218010SZ
Exact Tooling IR#: 04
Features and Benefits
Semi tubular rivets have a head on one end and a shank on the other that is partially hollow along its length. When installed, the partially hollow portion buckles up and holds the workpiece.
Round head types are dome shaped with flat bearing surfaces. They have a higher head height than pan head rivets.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Semi Tubular Rivet |
| Head Type | Round |
| Minimum Hole Diameter (Decimal Inch) | 0.0840 |
| Maximum Hole Diameter (Decimal Inch) | 0.0900 |
| Body Diameter (Inch) | 1/8 |
| Length Under Head (Inch) | 5/16 |
| Head Diameter (Decimal Inch) | 0.2188 |
| Head Diameter (Inch) | 7/32 |
| Material | Steel |
| Finish/Coating | Zinc-Plated |
