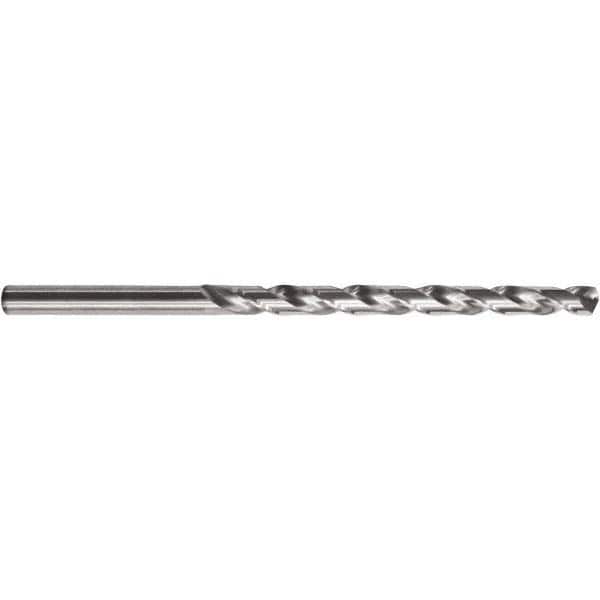

Taper Length Drill Bit: 0.0906″ Dia, 130 ° Bright/Uncoated, RH Cut, Spiral Flute, Straight Shank, Series 617
Item #: 79289211
Brand: Guhring
Model #: 9006170023000
Product Specifications
| Drill Bit Size (mm) | 2.30 |
| Tool Material | Cobalt |
| Coating/Finish | Bright/Uncoated |
| Flute Length (mm) | 59.00 |
| Shank Type | Straight |
| Point Type | Split |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (mm) | 90.00 |
| Shank Diameter (mm) | 2.30 |
| Drill Bit Size (Decimal Inch) | 0.0906 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 617 |
| Shank Diameter (Decimal Inch) | 0.0906 |
| Flute Length X Diameter Ratio | 10xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 340 |
| Spiral Type | Regular |
| Material Grade | M-35 |
