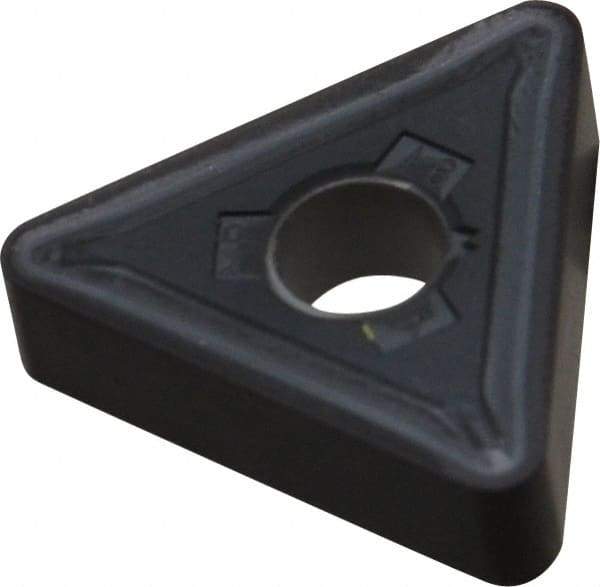

Kennametal - TNMG434 MP Grade KC5010 Carbide Turning Insert - TiAlN Finish, 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 1/16" Corner Radius
Item #: 79260857
Brand: Kennametal
Model #: 1832359
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 434 |
| Material | Carbide |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8661 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | KC5010 |
| Coating | TiAlN |
| Material Grade | C3/C4 |
| Chip Breaker | MP |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Rake | Positive |
| Rake Angle | 6 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P; S; N |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
