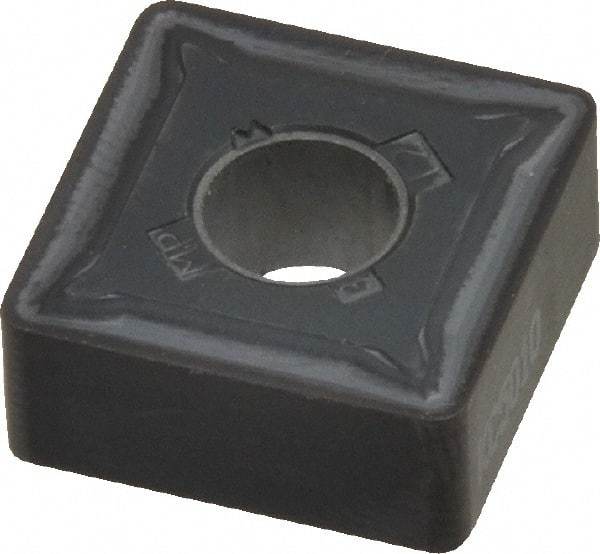

Kennametal - SNMG543 MP Grade KC5010 Carbide Turning Insert - TiAlN Finish, 90° Square, 5/8" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 79260808
Brand: Kennametal
Model #: 1832330
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 543 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KC5010 |
| Coating | TiAlN |
| Material Grade | C3/C4 |
| Chip Breaker | MP |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | SNMG543 |
| Rake | Positive |
| Rake Angle | 6 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P; S; N |
| Included Angle | 90 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
