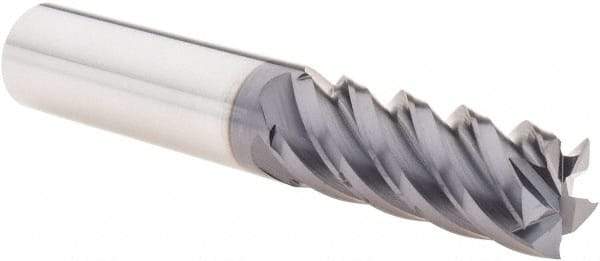

Value Collection - 1/2" Diam, 1-1/4" LOC, 5 Flute Solid Carbide Roughing Square End Mill - TiAlN Finish, 3" OAL, 1/2" Shank Diam, Single End, 45° Helix
Item #: 79093985
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1/2 |
| End Type | Square End |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Overall Length (Inch) | 3 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 45.00 |
| Extended Reach | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Helix Style | Medium |
| Mill Diameter Tolerance (Decimal Inch) | +0.0000/-0.0012 |
| Shank Diameter Tolerance (Decimal Inch) | +0.0000/-0.0003 |
| Overall Length (Decimal Inch) | 3.0000 |
