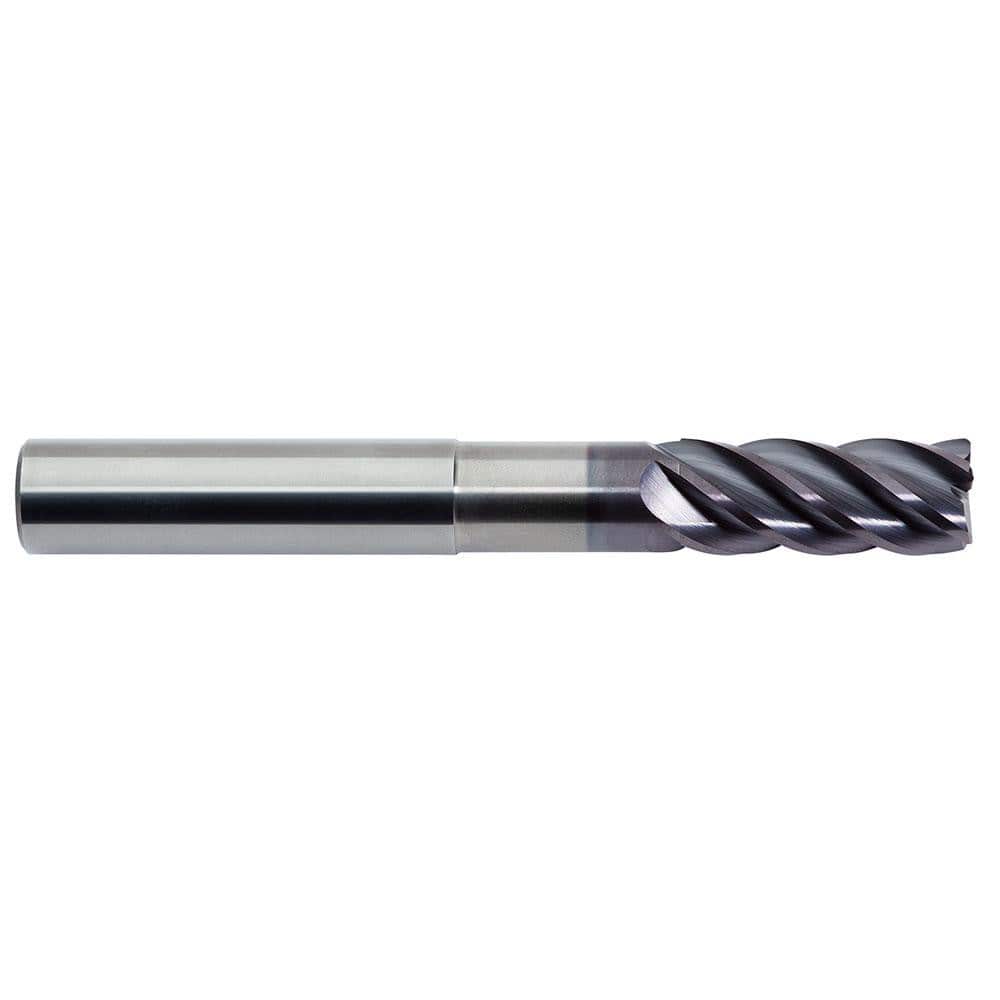

Corner Radius End Mill: 3/4″ Dia, 1-7/8″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 5″ OAL, 3/4″ Shank Dia, 38 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series 178N
Item #: 79016283
Brand: M.A. Ford?
Model #: 17875024NA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1-7/8 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/4 |
| Neck Diameter (Decimal Inch) | 0.7200 |
| Reach Length (Inch) | 3 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Maximum Helix Angle | 38.00 |
| Mill Diameter Tolerance | +0.000000 to -0.003000 in |
| Primary Workpiece Material Code | P; S; K; M |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 178N |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.8750 |
