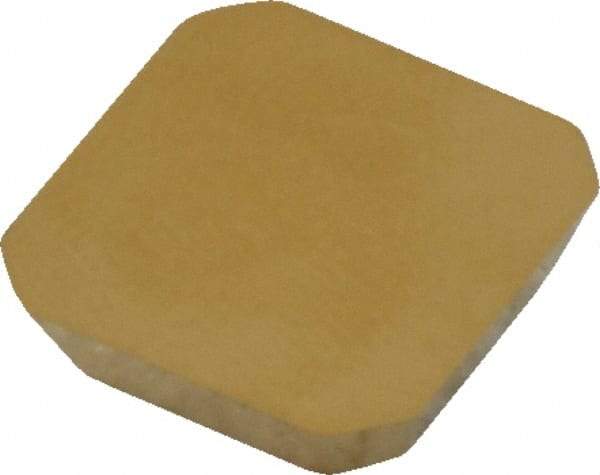

Kennametal - SEKN42 LN Grade KC730 Carbide Milling Insert - TiN Finish, 0.1252" Thick, 1/2" Inscribed Circle, 1mm Corner Radius
Item #: 78998499
Brand: Kennametal
Model #: 1181163
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEKN |
| Insert Size | 42 |
| Material | Carbide |
| Material Grade | C2/C3/C4 |
| Manufacturer's Grade | KC730 |
| Coating | TiN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | LN |
| ISO Number | SEKN1203AFFNLN |
