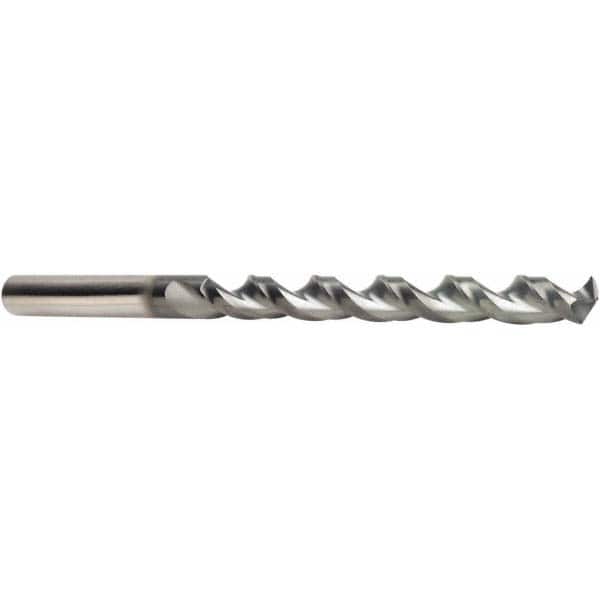

Taper Length Drill Bit: 0.2834″ Dia, 130 ° AlCrN Finish, RH Cut, Spiral Flute, Straight Shank, Series A941
Item #: 78983517
Brand: DORMER
Model #: 5972891
Product Specifications
| Tool Material | Cobalt |
| Coating/Finish | AlCrN |
| Flute Length (mm) | 102.00 |
| Shank Type | Straight |
| Point Type | Special |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (mm) | 156.00 |
| Drill Bit Size (Decimal Inch) | 0.2834 |
| Cutting Direction | Right Hand |
| Series | A941 |
| Shank Diameter (Decimal Inch) | 0.2835 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Bit Grade | High Performance |
| Spiral Type | Fast |
| Material Application3 | Brass; Carbon Steel; Aluminum Alloy; High Strength Bronze; Steel; Tempered Steel; Magnesium Alloy; Alloy Steel; Stainless Steel; Cast Iron; Graphite; Titanium; Titanium Alloy; Malleable Iron; Hardened Steel |
| Material Grade | M-42 |
