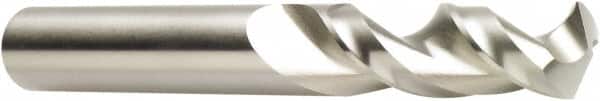

DORMER - 0.689" 130° Spiral Flute Cobalt Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 62mm Flute Length, 123mm OAL, Special Type Point, Straight Shank
Item #: 78976636
Brand: DORMER
Model #: 0052143
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.6890 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 62.00 |
| Overall Length (mm) | 123.00 |
| Point Type | Special Point Type |
| Shank Diameter (Decimal Inch) | 0.6890 |
| Specification Designation | ANSI; DIN |
| Spiral Type | Fast Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | A920 |
