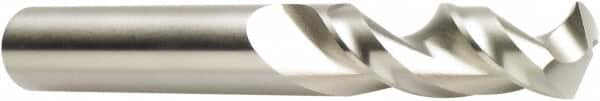

Screw Machine Length Drill Bit: 0.4921″ Dia, 130 °, Cobalt Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A920
Item #: 78976529
Brand: DORMER
Model #: 5972426
Product Specifications
| Drill Bit Size (mm) | 12.50 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 130 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Special |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.4921 |
| Drill Bit Size (Decimal Inch) | 0.4921 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Series | A920 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Flute Length (mm) | 51.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Specification Designation | DIN; ANSI |
