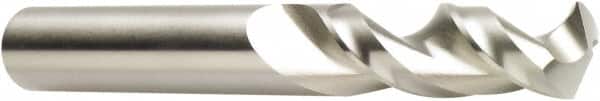

Screw Machine Length Drill Bit: 0.4331″ Dia, 130 °, Cobalt Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A920
Item #: 78976420
Brand: DORMER
Model #: 5972378
Product Specifications
| Drill Bit Size (mm) | 11.00 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 130 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Special |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Series | A920 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | 0 to -27 ?m |
| Standards | DIN; ANSI |
| Flute Length (mm) | 47.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Specification Designation | DIN; ANSI |
