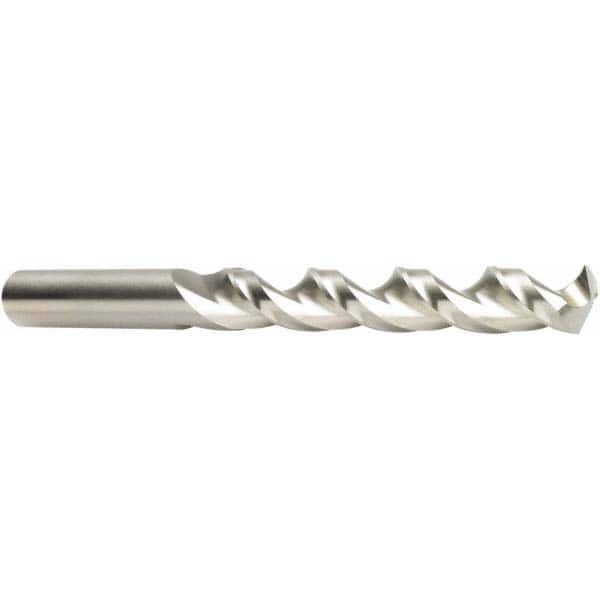

Jobber Length Drill Bit: 0.5118″ Dia, 130 °, Cobalt Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank
Item #: 78973534
Brand: DORMER
Model #: 5971429
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Drill Bit Size (mm) | 13.00 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Special |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5118 |
| Overall Length (mm) | 151.00 |
| Flute Length (mm) | 101.00 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 12.50 - 15.00 |
| Specification Designation | DIN; ANSI |
