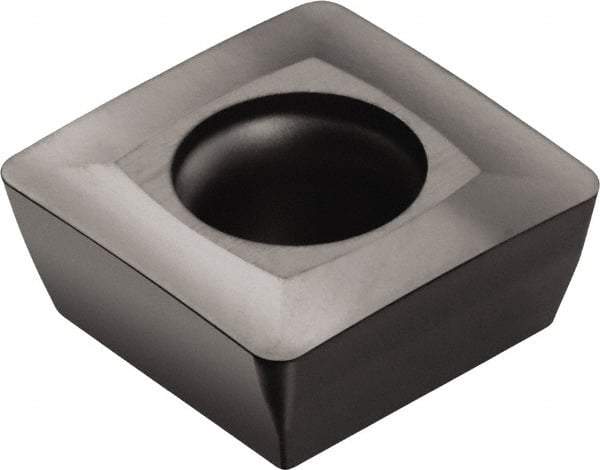

Sandvik Coromant - SPMT432 WH Grade SM30 Carbide Milling Insert - Uncoated, 4.75mm Thick, 1/2" Inscribed Circle, 0.8mm Corner Radius
Item #: 78945011
Brand: Sandvik Coromant
Model #: 5751099
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 432 |
| Material | Carbide |
| Manufacturer's Grade | SM30 |
| Coating | Uncoated |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.75 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Corner Radius (mm) | 0.80 |
| Coating Process | Uncoated |
| Included Angle | 0 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | WH |
| Maximum Depth of Cut (Decimal Inch) | 0.4690 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SPMT 12 04 08-WH SM30 |
