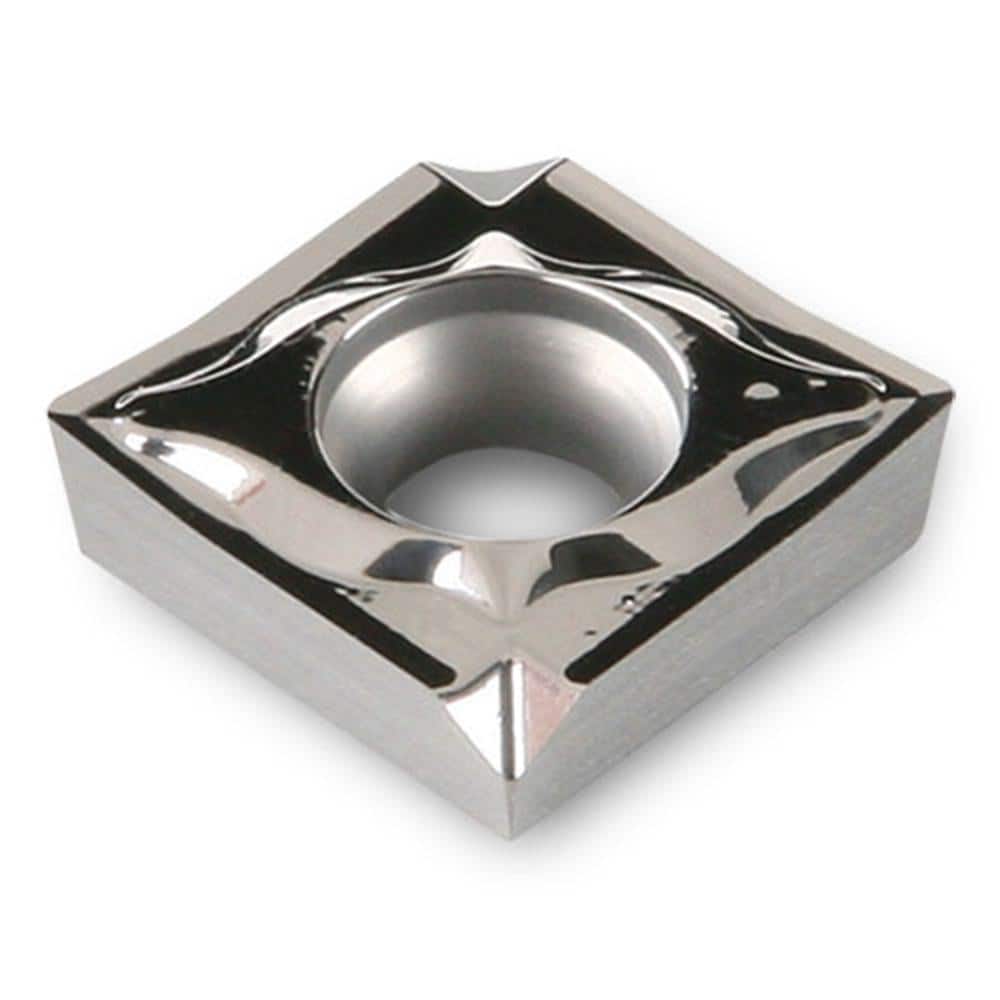

XCGT080304TA K10 Carbide Turning Insert 83.5° Included Angle
Item #: 78855749
Brand: Ingersoll Cutting Tools
Model #: 5518807
Product Specifications
| Insert Style | XCGT |
| Insert Shape Code | X |
| Insert Size Code | 080304 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | K10 |
| Inscribed Circle (Decimal Inch) | 0.3310 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 83.5 |
| Relief Angle | 7 |
| Series | XCGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3310 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K; N |
| Ansi Code | XCGT080304TAK10 |
| Iso Code | XCGT080304TA K10 |
| Standards | ISO |
| Chip Breaker | TA |
| Coating/Finish | Uncoated |
