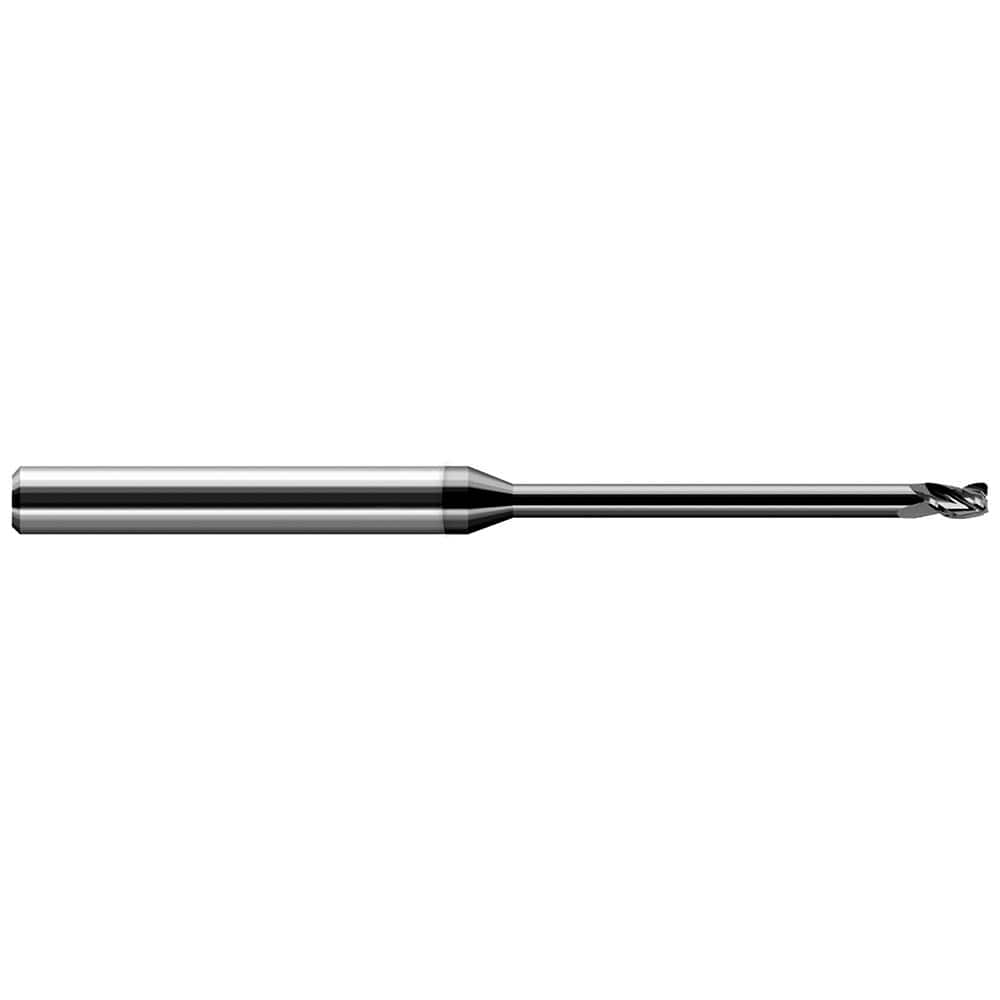

Corner Radius End Mill: 1/4″ Dia, 3/8″ LOC, 0.03″ Radius, 3 Flutes, Solid Carbide 6″ OAL, 1/4″ Shank Dia, 30 ° Helix, Amorphous Diamond Coated, Corner Radius End
Item #: 78761269
Brand: Harvey Tool
Model #: 42616-C4
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Length of Cut (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 30 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Inch) | 3 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | Miniature End Mills - Corner Radius - Long Reach, Stub Flute |
| Single Or Double End | Single |
| Coating/Finish | Amorphous Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
