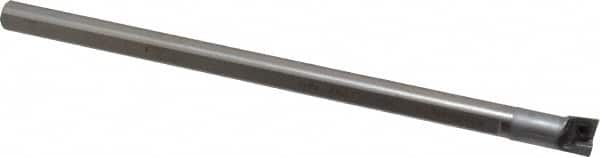

Kennametal - 0.415" Min Bore Diam, 5.995" OAL, 0.313" Shank Diam, L-SCLP Indexable Boring Bar - 0.76" Max Bore Depth, CP.. Insert, Screw Holding Method
Item #: 78716156
Brand: Kennametal
Model #: 3331042
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | L-SCLP |
| Series | Screw-On |
| Minimum Bore Diameter (Decimal Inch) | 0.4150 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.7600 |
| Overall Length (Decimal Inch) | 5.9950 |
| Shank Diameter (Decimal Inch) | 0.3130 |
| Insert Compatibility | CP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.2190 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.0940 |
| Complete Insert Compatibility | CP.. 21.51 |
| Toolholder Material | Heavy Metal |
